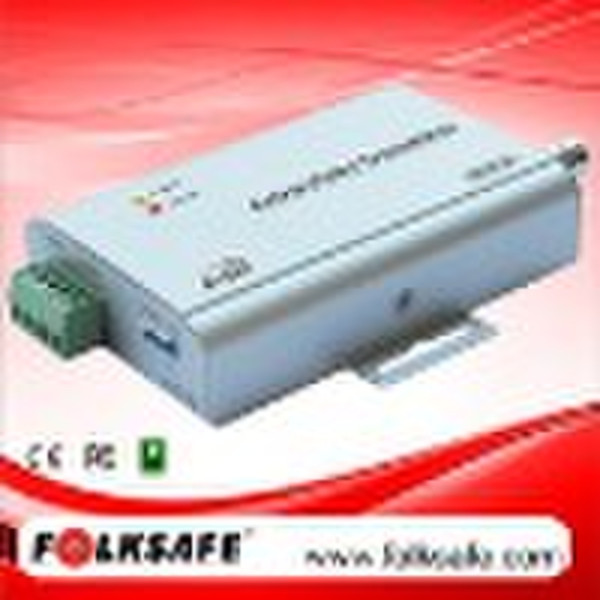

1-CH Active Video Transmitter Video Balun

balun video passivo Model FS-4401S Overview The FS-4401S video balun is a active (amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported. The FS-4401S is a compact unit. The power requirement is 12/24V DC/AC. The screw terminal blocks of FS-4401S allows easy connection of UTP cable output. It transmit one single channel video signal from camera end to DVR end via one UTP cable at distance up to 3900ft(1200m) when used with active video receiver. The FS-4401S has a single distance adjustment as well as built-in surge suppression to protect video equipment against damaging voltage spikes. Its Integrated Ground Loop isolation prevents annoying "hum-bars" common with long distance installations and its excellent crosstalk and noise immunity provides quality video up to the maximum distance.The superial interference rejection and low emissions of the FS-4401S allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. Features Single Channel Active Video Transmitter •Full-motion color video signal up to 3900ft(1200m) via UTP cat5e/6 •NTSC, PAL & SECAM video format compatible •Real-time transmission •12V/24V DC/AC power supply •Adjustable for various video distance •Female BNC connector • Pluggable screw terminal block or UTP •Exceptional interference rejection •70 dB crosstalk and noise immunity •Full ground-loop immunity •Built in TVS(Transient Voltage Suppressors) for surge protection •Lightning protection design Grade:V •Compact size and easy installation •Silver metal housing Applications • Security Monitoring System• Multimedia Network Teaching System• Medical Monitoring Display System• Industrial Automation Control System• Banking, securities, financial information display system• Remote Network Server Monitoring• Department Store Security• Casino Security• Hospitals, Airports and banks• School Campuses Video balun, UTP video balun, UTP balun,CCTV balun,video transceiver,balun,transmitter,twisted pair,transceiver,passive balun,active balun,active transmitter,active receiver,passive transceiver,passive video balun,active video balun
