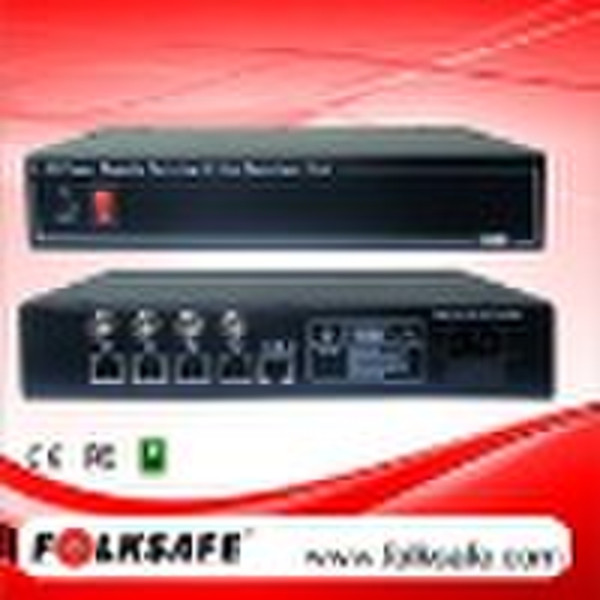

4-CH Power Supply Video Receiver with Data UTP Vid

UTP Video Balun Model FS-4504VPDSOverview The FS-4504VPDS is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room. The Power Supply Passive Video Receiver Hub provides 12VDC /24VAC power to camera while worked with FS-4301VPDT. Power and data transmission distance reach up to 1000ft(300m)Features4-CH Power Supply Passive Video & Data Receiver Hub•Provides camera power while receiving video transmission anddelivering P/T/Z telemetry all over a single 4-pair UTP cat5e/6•Color video up to 1300ft(400m) via UTP cat5e/6•Input Power 110VAC/220VAC; Max 1A per channel•Transmit 12VDC/24VAC power up to 1000ft /300m•Transmit PTZ data signal up to 1000ft (300m)•Use with FS-4301VPDT at camera•BNC male and RJ45 Jack•NTSC, PAL & SECAM video format compatible;•Real-time transmission;•Exceptional interference rejection;•Built-in TVS(Transient Voltage Suppressors) for surge protection•Lightning protection design Grade: III•Wave Filter Design, Anti-Static Design•Black galvanized housing •Rack, wall mountable and desk installation with 4 rubber feetApplications • Security Monitoring System• Multimedia Network Teaching System• Medical Monitoring Display System• Industrial Automation Control System• Banking, securities, financial information display system• Remote Network Server Monitoring• Department Store Security• Casino Security• Hospitals, Airports and banks• School Campuses video balun,balun, UTP video balun, CCTV balun, CCTV video balun, balun connector, video transceiver, UTP balun, passive video balun, active video balun, passive balun, active UTP video balun, active balun, Surge Protector, lightning surge protector, vga extender, USB Extender, vga cat5 extender, hdmi extender, twisted pair transmitter, passive UTP balun, balun rj45, balun video passive, balun converter, balun video, utp converter, video balun for cctv, video balun transceiver, BNC video balun, cat5 balun, balun del cctv, passive utp video balun, usb extender over cat5e, usb extender rj45, usb 2.0 extender, kvm extender, power surge protector, surge protector device, 220v surge protector, telephone surge protector, cctv surge protector, data surge protector, high definition hdmi extender, hdmi ir extender, hdmi converter, av extender, cat5 av extender
